Hammer Union

2023-05-05 16:49 1128 views

  • ‌Provided with weak nitrile rubber sealing ring and used for sealing and protecting combination of union steel pairs.
  • Recommended for connection of manifolds and pipelines, vehicle-mounted system and mud transportation and also can be used as non-pressure seal union.
  • Suitable for air, water, oil and gas service.
  • Made of high quality steel by forging and finishing cut.
  • Adopts some end connections of pipeline thread, tubing thread, butt-weld.
Technical Specification

Hammer Unions are designed as heavy-duty, high-pressure flow line connectors, which is commonly applied to chemical plants, on marine dredging vessels, in strip mines and in the oil industry. The colour-coding system on Hammer Unions represents the different configurations and pressure ratings.

Product NameHammer Union, Weco Union
TypeFig100, Fig200, Fig206, Fig300, Fig400, Fig402, Fig602, Fig1002, Fig1003, Fig1502, etc.
Surface ColorYellow, Red, Blue, Orange, according to configuration and pressure
Working Pressure Range1000~15000psi
Size1″ 2″ 3″ 4″ 5″ 6″ 8″
Application:Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction, etc.
Connection typeWelded, Threaded

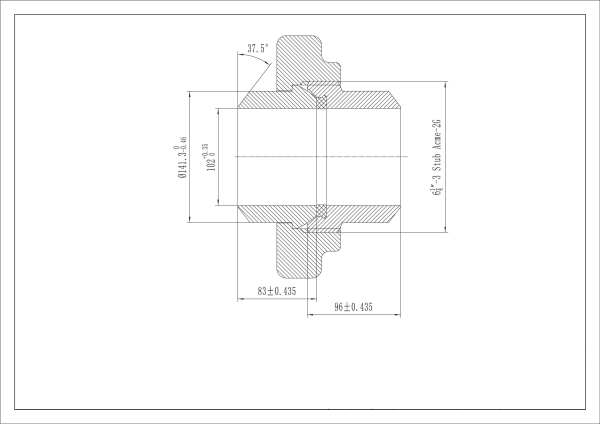

Drawing

Pre: Plug Valve
Next: Swivel Joint
