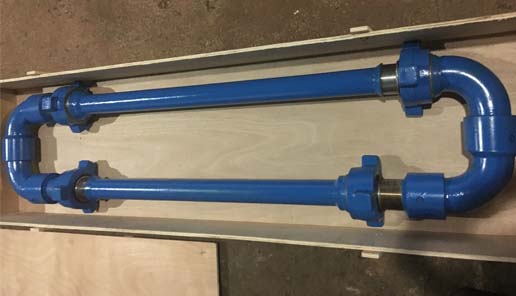

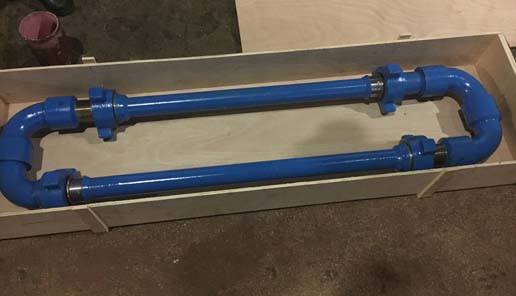

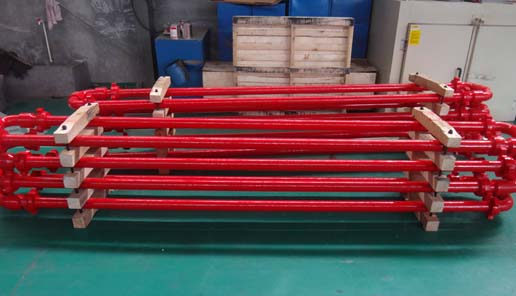

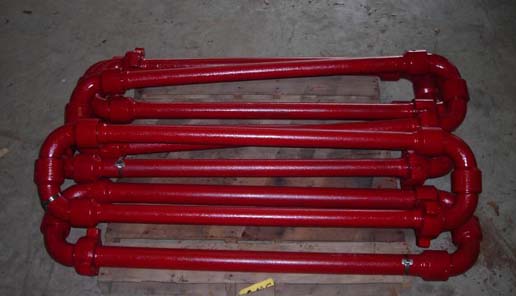

Hose Loop

2023-05-05 16:59 358 views

  • ‌The hose loop is characterized by flexibility, impact resistance, vibration resistance, big rate of flow, etc.
  • The hose loop is connected by union, which is simple to assemble and disassemble, crush resistance, and with high sealing performance.
  • It has the advantage of easy foldability, convenient transportation and storage.
  • The thread joint conforms to international specifications.
Technical Specification


The hose loop is assembled by swivel joints, hammer union and pup joint, it can be swivelled in three directions flexibly. It is commonly used in oil field cementing, acid fracturing etc. It is usually used in discharge pup joint, transportation pup joint, well testing pup join, well-cementing pup joint, and transportation liquid flow under a high-pressure environment.

Product NameCirculating Hose Loop, Chiksan Hose Loop
Material ClassAA-EE
Working MediaCrude oil and natural gas
Processing Standard6A
Working Pressure6000~15000psi
Nominal Bore Diameter2”, 3”, 4”
Connection Typefig602, fig1002, fig1502 etc.
TypeLong radius, short radius
CustomizedPlease provide size, type, pressure, length etc. Or drawing

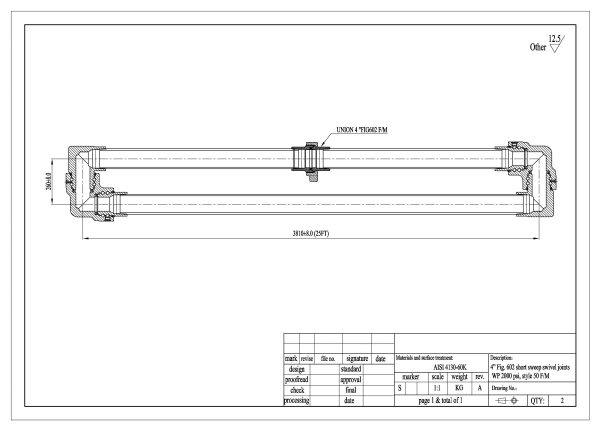

Drawing
