Plug Valve

2023-05-05 16:53 967 views

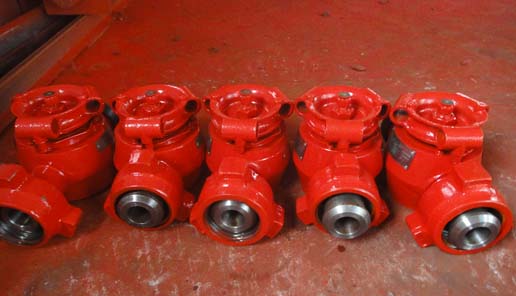

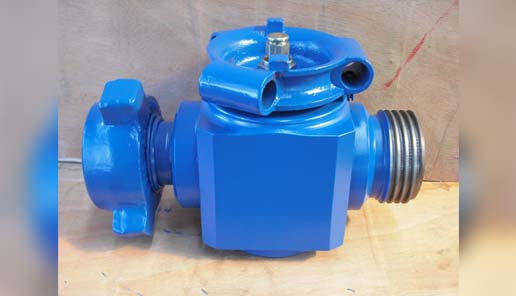

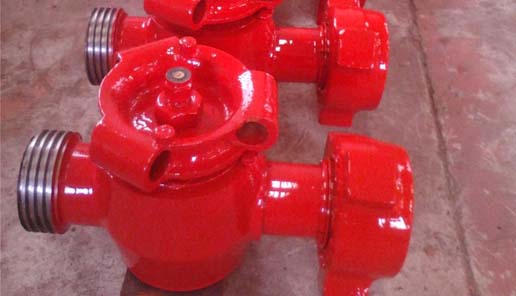

  • ‌The plug valve consists of the valve body, plug cap, plug and etc.
  • The plug valve is available with the union inlet and outlet connection and BOX and Pin thread connection.
  • The metal-to-metal sealing is available between the side segments and cylinder plug, featuring high precision and reliability.
  • Applied to standard, sour gas and low temperature service.

Technical Specification

Flowline plug valve is a necessary part that is applied to the high-pressure manifold in well cementing and fracture services also are selected for high-pressure fluid control system. It is excellent for its compact structure, easy maintenance, low torque and rapid operation.

Product NameHigh-pressure plug valve/low torque valve/flow line plug valve
Material ClassAA-EE
Working MediaCrude oil and natural gas
Processing StandardAPI 6A
Working Pressure3000~15000psi
Processing TypeForge
Performance RequirementPR1-2
Product specification levelPSL1-3
Nominal Bore Diameter1″, 2″, 3″
Connection TypeUnion, BOX thread, Pin thread

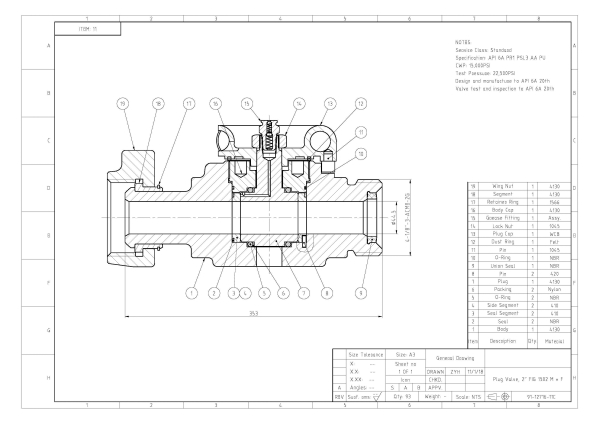

Drawing
