Mud Pump Piston

2023-05-05 15:15 933 views

  • 100% interchangeable with the most common brands of mud pumps.
  • High tensile strength.
  • Maximud operating temperature up to 250°F.
  • Extended service life.
  • Customized pistons according to drawings can be produced, too.

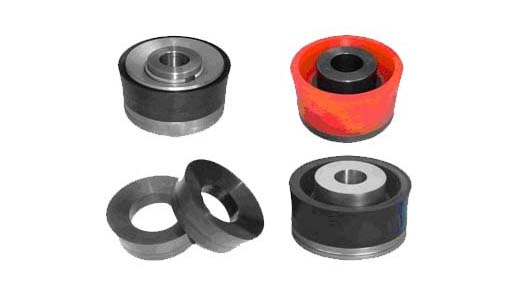

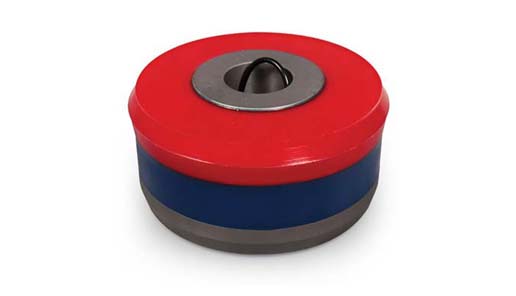

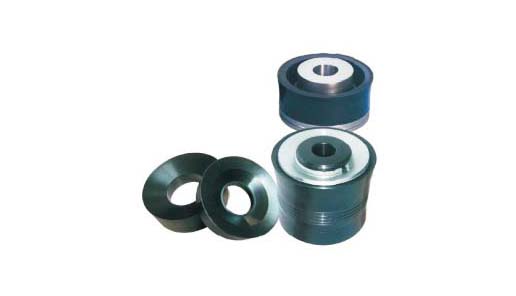

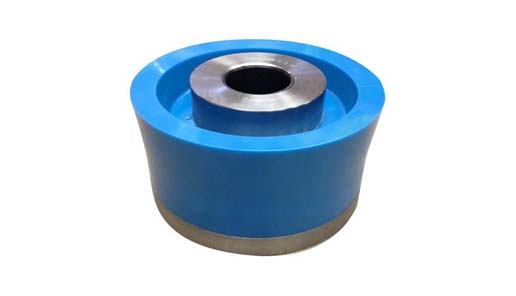

‌Mud Pump Piston assembly is the important spare parts and expendable parts of oil drilling mud pumps.

Mud Pump Pistons are made of high hardness alloy steel, and they are wear-resistant, anti-corrosive and anti-distortion after heat treatment. The seal of the piston can be made of polyurethane, polyether material and it can be also made of thiakol rubber.

Type: Bonded pistons, Replaceable pistons

Material of piston hub: forged by 45# steel or 40Cr with hardening and tempering

Material of piston cup: urethane NBR rubber

Surface treatment of piston hub: by phosphating and by Oxidizing

Size: 3 ~ 8 in

Brand: NATIONAL, GD, EMSCO, OILWELL, IDECO, DRILLMEC, WEATHERFORD, BOMCO, TSC, EWCO, AMERICAN BLOCK, EWECO, HONGHUA, LS NOV, WIRTH, RONGSHENG

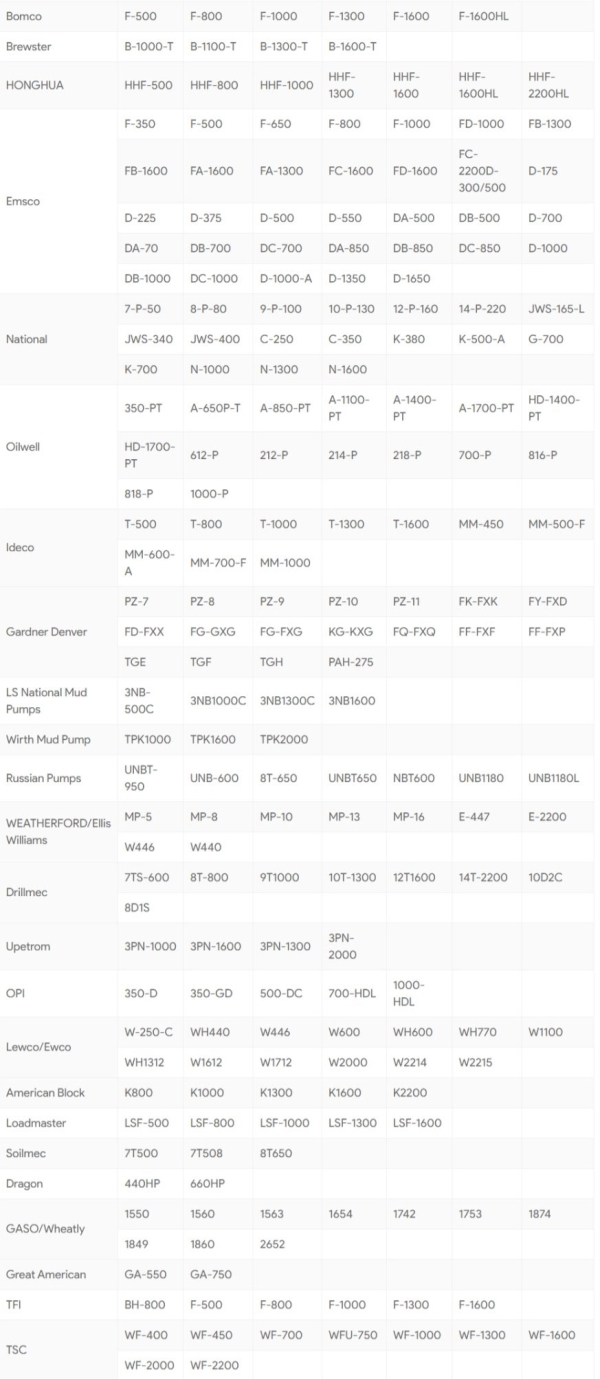

Suitable Pump Models

content
  • Mud Pump Fluid End Module
    Mud Pump Fluid End Module is an important component of the hydraulic pump end of the mud pump.
  • Mud Pump Pulsation Dampener
    Mud Pump Pulsation Dampener is usually installed on the discharge line to reduce the fluctuation of pressure and displacement of the drilling mud pump.
  • Mud Pump Valve & Seat
    Mud Pump Valve Assy include valve body, valve seat, valve insert (valve rubber).Mud Pump Valve & Seat are made of premium alloy steel through one-piece forging and carburizing treatment processes, thereby ensuring high intensity. In addition, the precise
  • Mud Pump Liner
    100% interchangeable with the most common brands of mud pumps.Long lasting service life up to 4000 hours.Could be used around 7500 psi of working pressure.Also provide reliable Liner packing Seal Rings.Customized Liners according to drawings can be produced, too.
